P. 139
}

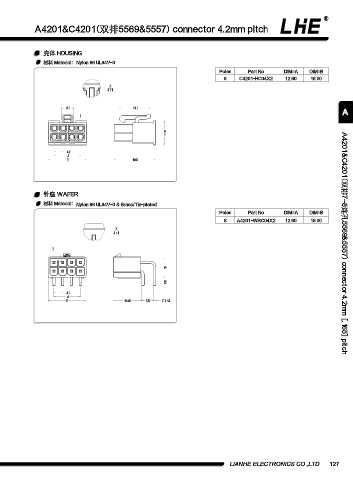

A4201&C4201(雙排5569&5557) connector 4.2mm pitch
殼體 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
8 C4201-HC04X2 12.60 18.00
Z
4 : 1
5.3 14.8
A
Z
11.6
4.2
A
B 19.5
針座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
8 A4201-WRC04X2 12.60 18.00
Z
4 : 1
Z A4201&C4201(雙排7~8連孔5569&5557) connector 4.2mm [.165] pitch
10
3.6
4.2
A
B 13.33 5.5 o 1.14
LIANHE ELECTRONICS CO.,LTD. 127
