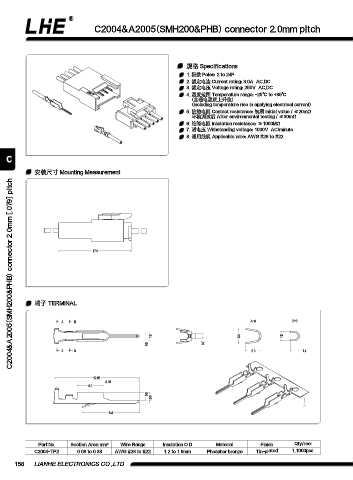

C2004&A2005(SMH200&PHB) connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 24P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #22

C

安裝尺寸 Mounting Measurement
C2004&A2005(SMH200&PHB) connector 2.0mm [.079] pitch

17.3

端子 TERMINAL

A B A-A B-B

1.5 2.3 1.5
0.5 0.7
A B 2.3 1.4

12.55
9.15
3.9
0.5
1.65

8.4

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C2004-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 1,1000pcs

158 LIANHE ELECTRONICS CO.,LTD.
