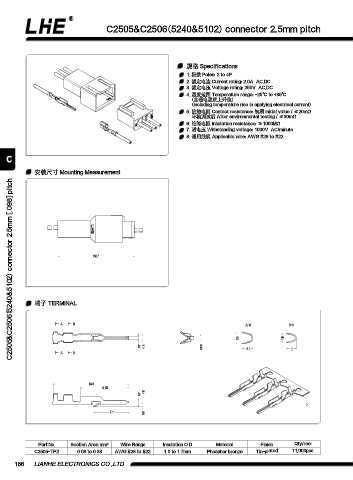

C2505&C2506(5240&5102) connector 2.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 4P
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #22

C

安裝尺寸 Mounting Measurement
C2505&C2506(5240&5102) connector 2.5mm [.098] pitch

22.7

端子 TERMINAL

A B A-A B-B

2.4 1.9
0.7 1.6 0.65 2.2 2
A B

14.8
9.65
1.5
0.7

7.1 0.5

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C2505-TP2 0.08 to 0.33 AWG #28 to #22 1.0 to 1.7mm Phosphor bronze Tin-plated 11,000pcs

166 LIANHE ELECTRONICS CO.,LTD.
